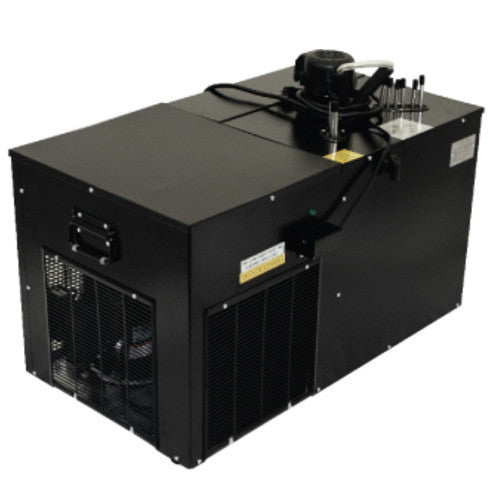

UBC Tayfun | Flash Beer Chiller, 6 Lines with Manual Thermostat (T160F-1/2T6)

Original price $2,229.99 - Original price $2,229.99
Original price
$2,229.99
$2,229.99 - $2,229.99
Current price $2,229.99

Flat Rate Shipping $400


An ideal choice for cooling beer, wine, or other beverages in settings with low capacity for conventional refrigeration. Similar in concept to a jockey box, this unit will cool up to 6 different beverages at once.

DESCRIPTION


Flash chiller is an ideal choice for cooling draft beer, wine on tap, and other carbonated or non-carbonated beverages in places with limited possibilities for other types of refrigeration.

This particular model T160F-1/2T6 has 6 product lines, which means you can cool up to 6 different beverages at once, which is quite handy for small bars and restaurants. Quick cooling is achieved thanks to the 6 x 58' stainless steel coils covered with ice-cold water.

Construction-wise, draft beer & wine keg cooling stations share some similarities with jockey boxes since they have an icebank with a stainless steel coil, which has to be covered with ice-cold water. The submerged agitator pump ensures quick and efficient cooling in any circumstances.

FEATURES


  • Capacity: from 1 to 6 product lines
  • Works with most beverages - alcoholic (beer or wine) and soft drinks (juice, seltzer, or water)
  • Cooling is achieved via running the product lines through 58’ stainless steel coils covered with ice-cold water
  • Icebank capacity: 53 lbs
  • Great for commercial use at bars, restaurants, and sports venues
SPECIFICATIONS

Part Number T160F-1/2T6
Maximum Distance, Ft 25'
Capacity-Compressor (evap 20F), BTU/hr 3100
Capacity-Ice Bank, BTU/hr 7500
Ice Bank, Lbs 53
Dedicated Circuit, Amp 15
Voltage, Volt/Hz 115/60
Power Consumption, Watt 800
Compressor Power, HP 1/2hp
Thermostat, Type Manual
Number of Product Lines, Coils 6
Coil Diameter, ID-OD, In 1/4" - 5/16"
Coil Length (total), Ft 350
Pump Type, Part Number FloJet SPC42
Pump Flow Rate, Gal/Hr (water) 240
Refrigerant, Type R134a
Dimensions - WxDxH, In 32x19x23
Weight Net/Gross lbs 125/136
