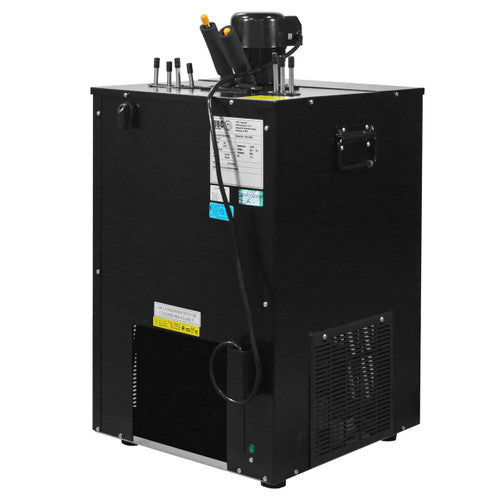

UBC Tayfun | Flash Beer Chiller, 4 Lines with Manual Thermostat (T120F-1/3T4)
Estimated time to Ship:
1-2 Weeks
Flat Rate Shipping $400
An ideal choice for cooling beer, wine, or other beverages in settings with low capacity for conventional refrigeration. Similar in concept to a jockey box, this unit will cool up to 4 different beverages at once.
DESCRIPTION
Flash chiller is an ideal choice for cooling draft beer, wine on tap, and other carbonated or non-carbonated beverages in places with limited possibilities for other types of refrigeration.
This particular model T120F-1/3T4 has 4 product lines, which means you can cool up to 4 different beverages at once, which is quite handy for small bars and restaurants. Quick cooling is achieved thanks to the 4 x 50' stainless steel coils covered with ice-cold water.
Construction-wise, draft beer & wine keg cooling stations share some similarities with jockey boxes since they have an icebank with a stainless steel coil, which has to be covered with ice-cold water. The submerged agitator pump ensures quick and efficient cooling in any circumstances.
FEATURES
- Capacity: from 1 to 4 product lines
- Works with most beverages - alcoholic (beer or wine) and soft drinks (juice, seltzer, or water)
- Cooling is achieved via running the product lines through 50’ stainless steel coils covered with ice-cold water
- Icebank capacity: 44 lbs
- Great for commercial use at bars, restaurants, and sports venues
Part Number | T120F-1/3T4 |
Maximum Distance, Ft | 25' |
Capacity-Compressor (evap 20F), BTU/hr | 2600 |
Capacity-Ice Bank, BTU/hr | 5500 |
Ice Bank, Lbs | 44 |
Dedicated Circuit, Amp | 15 |
Voltage, Volt/Hz | 115/60 |
Power Consumption, Watt | 750 |
Compressor Power, HP | 1/3hp |
Thermostat, Type | Manual |
Number of Product Lines, Coils | 4 |
Coil Diameter, ID-OD, In | 1/4" - 5/16" |
Coil Length (total), Ft | 200 |
Pump Type, Part Number | FloJet SPC42 |
Pump Flow Rate, Gal/Hr (water) | 240 |
Refrigerant, Type | R134a |
Dimensions - WxDxH, In | 17x19x30 |
Weight Net/Gross lbs | 97/106 |
