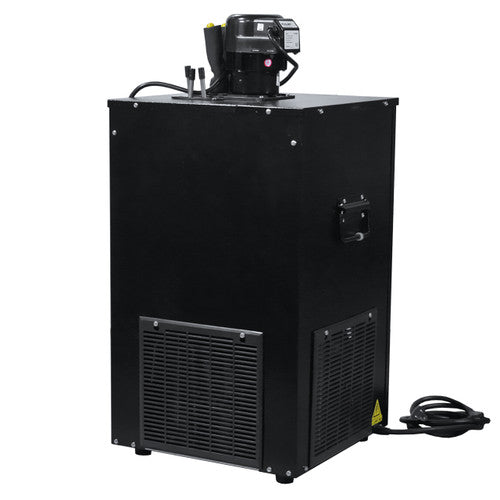

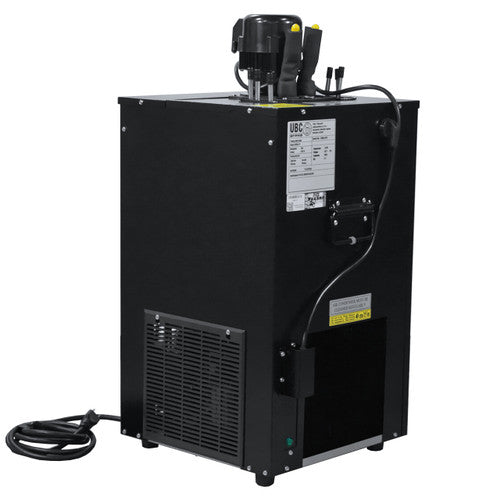

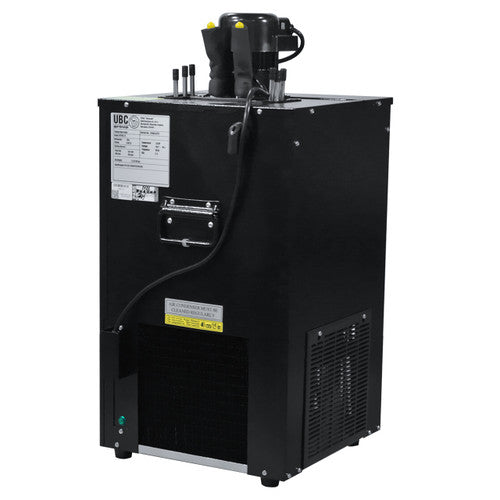

UBC Tayfun | Flash Beer Chiller, 3 Lines with Manual Thermostat (T75F-1/4T3)

Original price $1,592.99 - Original price $1,592.99
Original price
$1,592.99
$1,592.99 - $1,592.99
Current price $1,592.99

Estimated time to Ship:

1-2 Weeks


Flat Rate Shipping $400


An ideal choice for cooling beer, wine, or other beverages in settings with low capacity for conventional refrigeration. Similar in concept to a jockey box, this unit will cool up to 3 different beverages at once.

DESCRIPTION


Flash chiller is an ideal choice for cooling draft beer, wine on tap, and other carbonated or non-carbonated beverages in places with limited possibilities for other types of refrigeration.

This particular model T75F-1/4T3 has 3 product lines, which means you can cool up to 3 different beverages at once, which is quite handy for small bars and restaurants. Quick cooling is achieved thanks to the 3 x 40' stainless steel coils covered with ice-cold water.

Construction-wise, draft beer & wine keg cooling stations share some similarities with jockey boxes since they have an icebank with a stainless steel coil, which has to be covered with ice-cold water. The submerged agitator pump ensures quick and efficient cooling in any circumstances.

FEATURES






  • Capacity: from 1 to 3 product lines
  • Works with most beverages - alcoholic (beer or wine) and soft drinks (juice, seltzer, or water)
  • Cooling is achieved via running the product lines through 75’ stainless steel coils covered with ice-cold water
  • Icebank capacity: 22 lbs
  • Great for commercial use at bars, restaurants, and sports venues
SPECIFICATIONS

Part Number T75F-1/4T3
Maximum Distance, ft 25'
Capacity (evap 20F), BTU/hr 1900
Ice Bank, lbs 22
Ice forming time (Tamb=75°F) h 4.2
Dedicated Circuit, amp 15
Voltage/Hz 115/60
Compressor Power, hp 1/4hp
Thermostat Type Manual
Number of Product Lines, Coils 3
Coil Diameter, ID-OD 1/4"-5/16"
Coil Length (total), ft. 120
Pump Type FloJet SPC42
Refrigerant Type R134a
Dimensions WxDxH, in 14x15x29
Weight Net/Gross Lbs. 75/84
