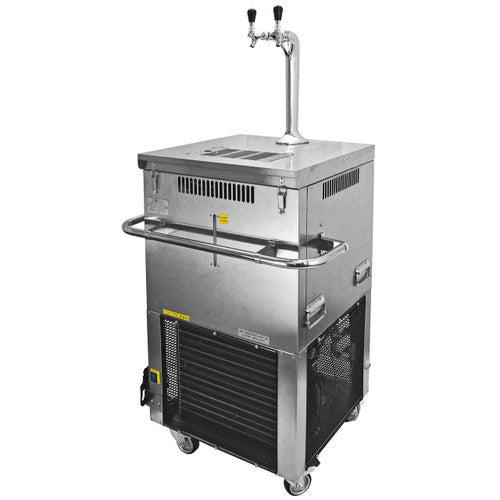

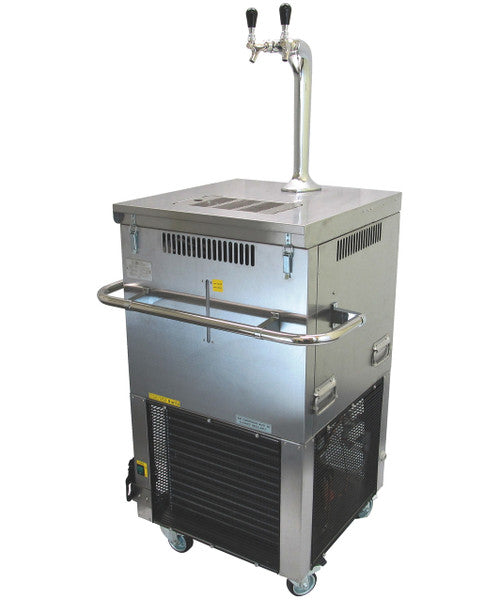

UBC Tayfun | Flash Beer Chiller, 2 Lines with Manual Thermostat (V-200EX1)

Original price $3,899.99 - Original price $3,899.99
Original price
$3,899.99
$3,899.99 - $3,899.99
Current price $3,899.99

Flat Rate Shipping $400


An ideal choice for cooling beer, wine, or other beverages in settings with low capacity for conventional refrigeration. Similar in concept to a jockey box, this unit will cool up to 3 different beverages at once.

DESCRIPTION


Flash chiller is an ideal choice for cooling draft beer, wine on tap, and other carbonated or non-carbonated beverages in places with limited possibilities for other types of refrigeration.

This particular model V-200EX1 has 2 product lines, which means you can cool up to 2 different beverages at once, which is quite handy for small bars and restaurants. Quick cooling is achieved thanks to the stainless steel coils covered with ice-cold water.

Construction-wise, draft beer & wine keg cooling stations share some similarities with jockey boxes since they have an icebank with a stainless steel coil, which has to be covered with ice-cold water. The submerged agitator pump ensures quick and efficient cooling in any circumstances.

FEATURES


  • Capacity: from 1 to 2 product lines
  • Works with most beverages - alcoholic (beer or wine) and soft drinks (juice, seltzer, or water)
  • Cooling is achieved via running the product lines through stainless steel coils covered with ice-cold water
  • Great for commercial use at bars, restaurants, and sports venues
SPECIFICATIONS

Part Number V200EX-3/4T2
Operating amperage (A) 11.2
Outlet temperature (°F) 32-46
Operating Ambient Temperature (ºF) 60-90
Plug Type NEMA 5-15P
Dedicated Circuit (A) 15
Voltage/Hz (V/Hz) 115/60
Compressor Power (hp) 1/2 +
Capacity (BTU/h), Evaporator @ 20ºF 5700
Capacity (BTU/h) 10500
Number of Product Lines, Coils 3
Coil Diameter (in) 5/16
Refrigerant R134A
Dimensions WxDxH (in) 27.55 x 24.5 x 40.8
Weight Gross/Net (lbs) 150/140
Power Cord Length (ft) 6
