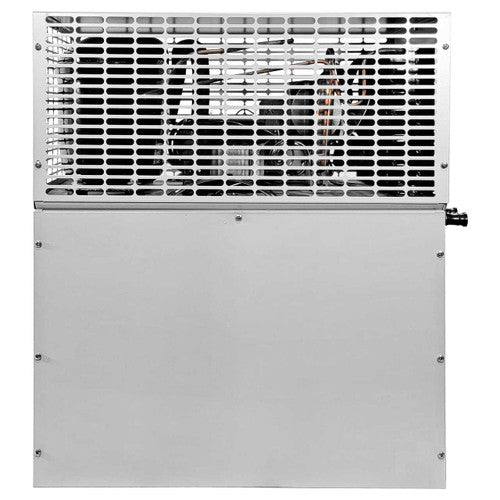

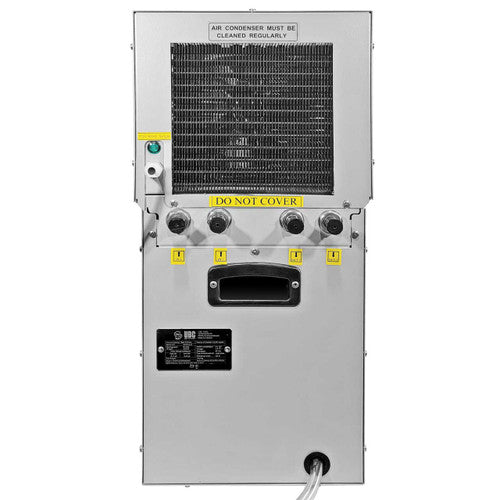

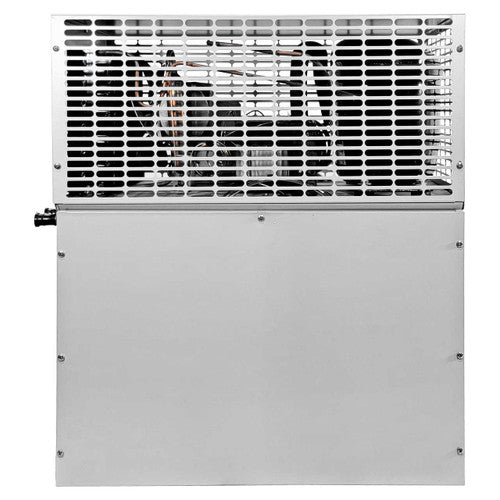

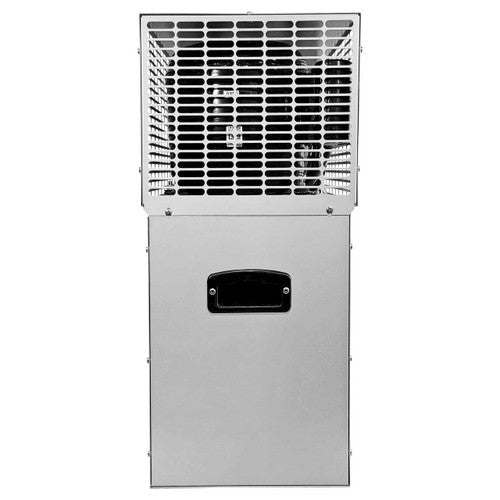

UBC Tayfun | Flash Beer Chiller, 2 Lines with Digital Thermostat (V30)
Flat Rate Shipping $400
An ideal choice for cooling beer, wine, or other beverages in settings with low capacity for conventional refrigeration. Similar in concept to a jockey box, this unit will cool up to 2 different beverages at once.
Flash chiller is an ideal choice for cooling draft beer, wine on tap, and other carbonated or non-carbonated beverages in places with limited possibilities for other types of refrigeration.
This particular model V-30 has 2 product lines, which means you can cool up to 2 different beverages at once, which is quite handy for small bars and restaurants. Quick cooling is achieved thanks to the 2x71' stainless steel coils covered with ice-cold water.
Construction-wise, draft beer & wine keg cooling stations share some similarities with jockey boxes since they have an icebank with a stainless steel coil, which has to be covered with ice-cold water. The submerged agitator pump ensures quick and efficient cooling in any circumstances.
- Capacity: from 1 to 2 product lines
- Works with most beverages - alcoholic (beer or wine) and soft drinks (juice, seltzer, or water)
- Cooling is achieved via running the product lines through 71’ stainless steel coils covered with ice-cold water
- Icebank capacity: 19 lbs
- Great for commercial use at bars, restaurants, and sports venues
|Maximum Distance, ft||n/a|
|Capacity (evap 20F), BTU/hr||1900|
|Ice Bank, lbs||19|
|Dedicated Circuit, amp||15|
|Compressor Power, hp||3/8hp|
|Number of Product Lines, Coils||2|
|Coil Diameter, ID-OD||5/16"-3/8"|
|Coil Length (total), ft.||71|
|Pump Type||Saber agita-tor|
|Dimensions WxDxH, in||28x19x13|
|Weight Net/Gross Lbs.||101/115|
