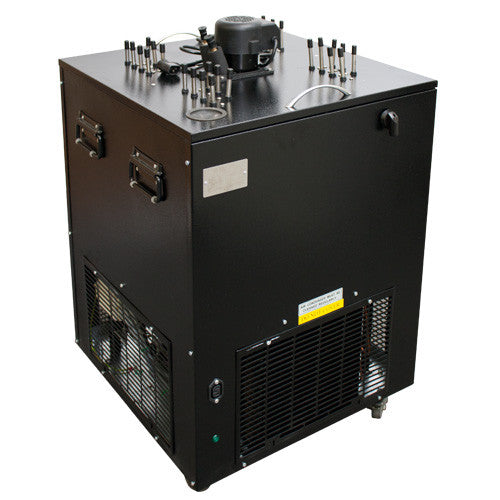

UBC Tayfun | Flash Beer Chiller, 14 Lines with Manual Thermostat (T220F)

Original price $3,133.99 - Original price $3,133.99
Original price
$3,133.99
$3,133.99 - $3,133.99
Current price $3,133.99

Estimated time to Ship:

1-2 Weeks


Flat Rate Shipping $400


An ideal choice for cooling beer, wine, or other beverages in settings with low capacity for conventional refrigeration. Similar in concept to a jockey box, this unit will cool up to 14 different beverages at once.

DESCRIPTION


Flash chiller is an ideal choice for cooling draft beer, wine on tap, and other carbonated or non-carbonated beverages in places with limited possibilities for other types of refrigeration.

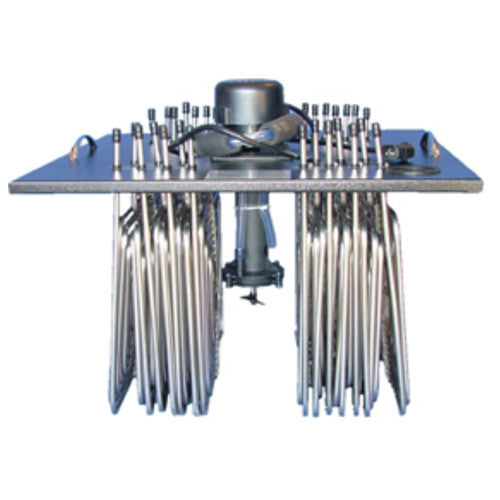

This particular model T220F has 14 product lines, which means you can cool up to 14 different beverages at once, which is quite handy for small bars and restaurants. Quick cooling is achieved thanks to the 14 x 30' stainless steel coils covered with ice-cold water.

Construction-wise, draft beer & wine keg cooling stations share some similarities with jockey boxes since they have an icebank with a stainless steel coil, which has to be covered with ice-cold water. The submerged agitator pump ensures quick and efficient cooling in any circumstances.

FEATURES


  • Capacity: from 1 to 14 product lines
  • Works with most beverages - alcoholic (beer or wine) and soft drinks (juice, seltzer, or water)
  • Cooling is achieved via running the product lines through 30' stainless steel coils covered with ice-cold water
  • Icebank capacity: 64 lbs
  • Great for commercial use at bars, restaurants, and sports venues
SPECIFICATIONS

Part Number T220F-1/2T14
Capacity-Compressor (evap 20F), BTU/hr 4500
Capacity-Ice Bank, BTU/hr 9000
Ice Bank, Lbs 64
Dedicated Circuit, Amp 15
Voltage, Volt/Hz 115/60
Operating Amperage, A
11.5
Compressor Power, HP 1/2
Thermostat, Type Manual
Number of Product Lines, Coils 14
Coil Diameter, ID-OD, In 1/4-5/16
Coil Length (total), Ft 420
Pump Type, Part Number "Totton" SPC42
Refrigerant, Type R134a
Dimensions - WxDxH, In 22.2x24.1x35
Weight Net/Gross lbs 154/141
