Summit | 28 Bottle Single Zone Stainless Steel Built-In Wine Refrigerator (VC28S)
Estimated time to Ship:
5-10 Business Days
KEY FEATURES
- Auto Defrost
- Built-in Capable
- Digital Thermostat
- Interior Light
- Hold 28 Bottles
- Operates 42-72ºF
- 18.13"H x 23.25"W x 22.13"D
DESCRIPTION

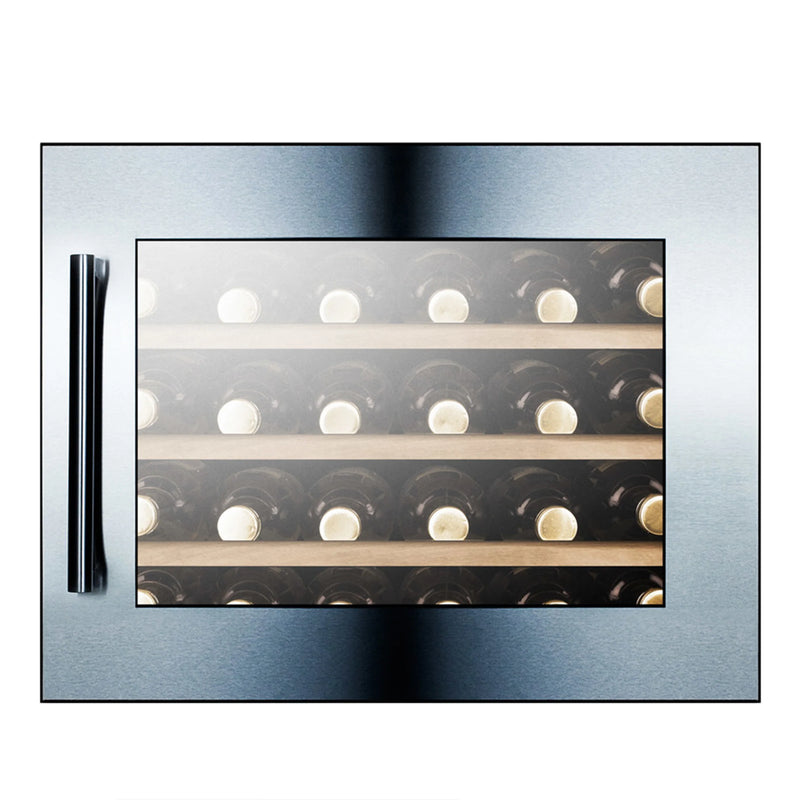

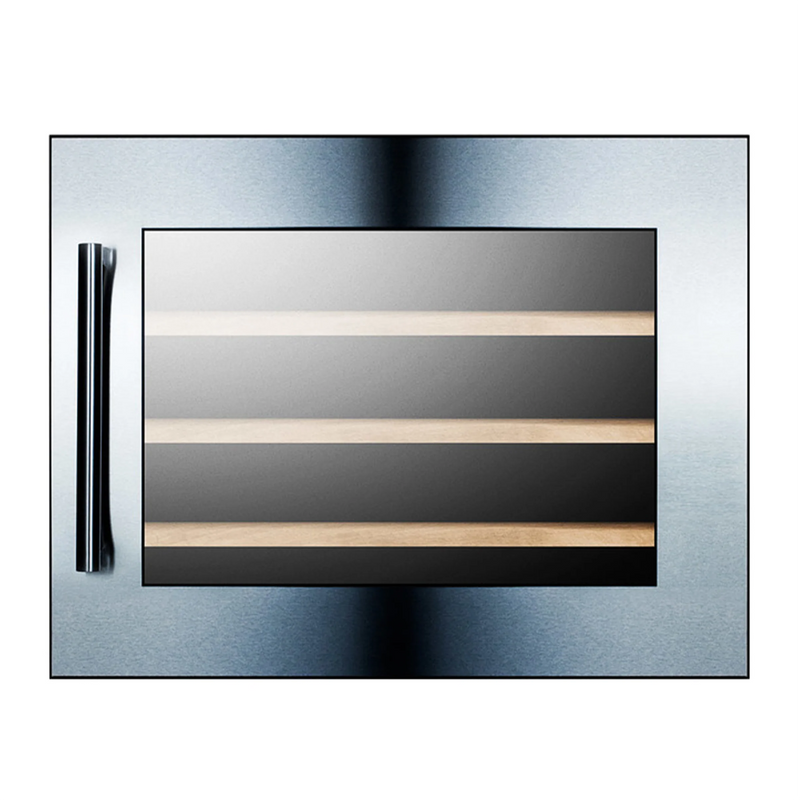

SUMMIT introduces fully integrated wine cellars for optimum storage and professional elegance.The VC28S is designed to store up to 28 bottles under the ideal conditions. The double pane tempered glass door ensures your collection is safely protected from UV light while offering a luxurious look with a seamless stainless steel frame. A professional handle adds a modern touch. The door swing is user reversible, offering more flexibility when positioning the unit.
Inside, the VC28S includes a digital thermostat for easy temperature management. Three wooden shelves hold bottles in classic style, with a floor specially slotted to store additional wine. The recessed LED lighting provides an elegant view of the interior, with an optional setting of display or functional mode. Additional features include an open door alarm, high/low temperature alarm and optional Sabbath Mode setting. The VC28S is auto defrost, with fan-forced cooling that ensures the interior temperature is evenly distributed and a condensation collection system that helps to maintain the correct level of humidity inside.

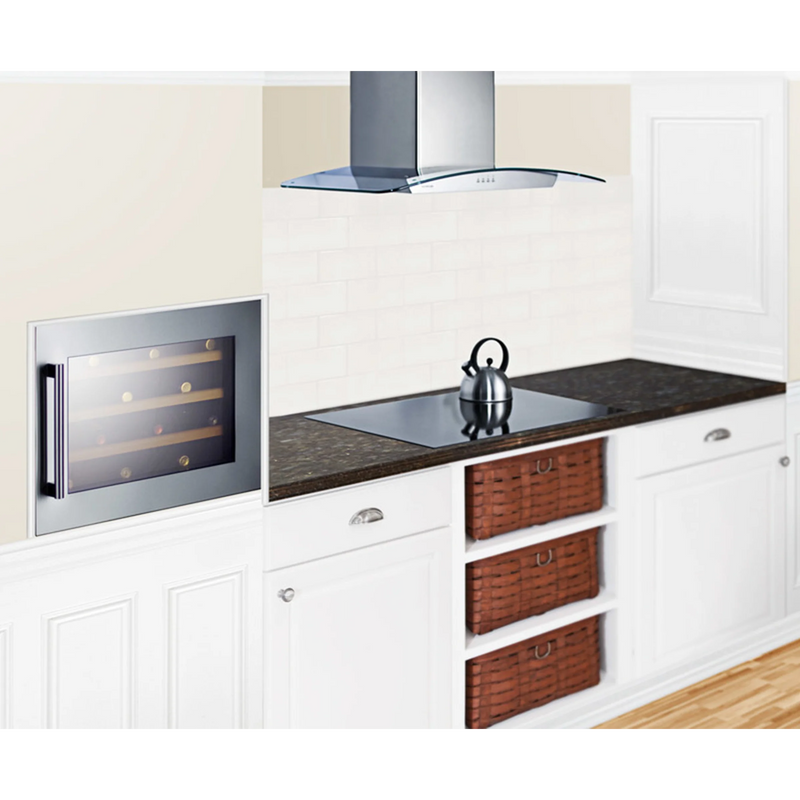

With a stunning look and quality design, the VC28S adds a great touch to any room. For our fully integrated dual zone wine cellar, see the VC60D. This unit is designed for fully integrated installation (cutout dimensions: 16 7/8" H x 21 1/2" W x 22 1/8" D; see user manual for additional information about providing proper ventilation and spacing for this unit).
FEATURES
- Digital thermostat: Electronic controls ensure easy and intuitive temperature management, with a readout in Celsius or Fahrenheit (temperature range: 40°F to 72°F)
- Dynamic compressor cooling: Ensures evenly cooled interior for proper storage
- Reversible glass door: User-reversible door swing in double pane tempered glass for best protection from UV light
- Slide-out wooden shelves: Store bottles safely in classic style
- Open door alarm: Sounds after door is left open for over a minute to best prevent accidents
- Interior light: Can be set for showcase mode, remaining on until manually turned off, or functional model (turning on when the door is opened and off when it is closed)
- Temperature alarm: Alarm sounds off when unit's interior rises or falls out of the set range
- Sabbath Mode: Optional setting lets you disable the lighting and alarm for 96 hours
- Built-in installation: Designed for fully integrated installation (cutout dimensions: 16 7/8" H x 21 1/2" W x 22 1/8" D; see user manual for additional information about providing proper ventilation and spacing for this uni)
- Humidity improvement: Proper humidity levels are maintained inside due to a specially designed condensation collection system
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 18.13" (46 cm) |
| Width | 23.25" (59 cm) |
| Depth | 22.13" (56 cm) |
| Depth with Handle | 23.88" (61 cm) |
| Depth with door at 90° | 44.75" (114 cm) |
| Bottles | 28 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Unfinished |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 71.0 lbs. (32 kg) |
| Shipping Weight | 96.0 lbs. (44 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101031255 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wood |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 1.27 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 13.75" (35 cm) |
| Interior Width 1 | 18.88" (48 cm) |
| Interior Depth 1 | 14.88" (38 cm) |
| Temperature Range | 42º to 72ºF |
| Sabbath Mode | Yes |
