Summit | 24" Wide Built-In Beverage Center ADA Compliant (ASDG2411)
Estimated time to Ship:
5-10 Business Days

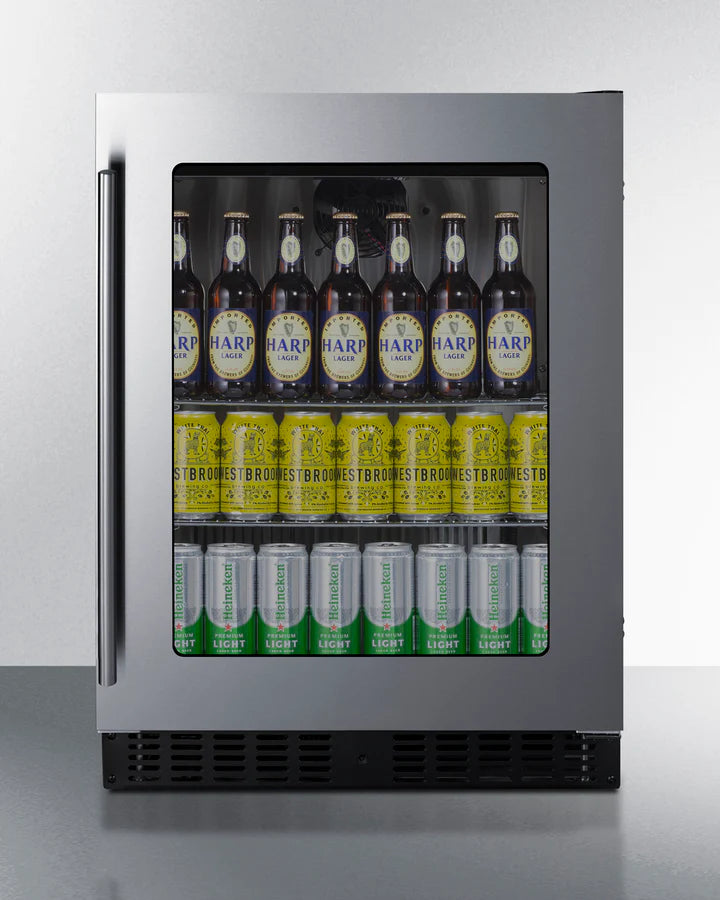

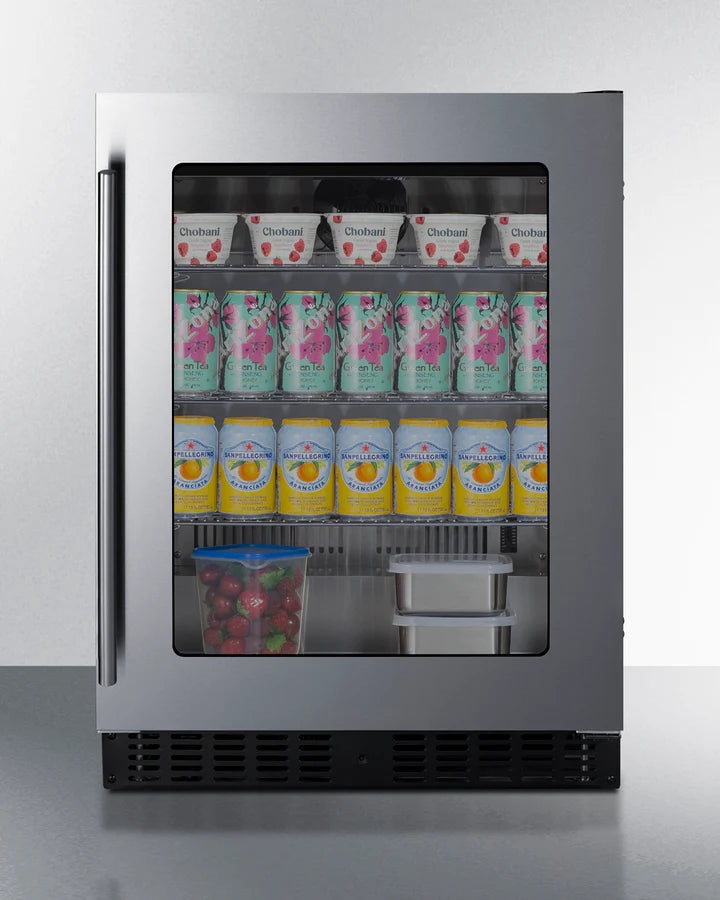

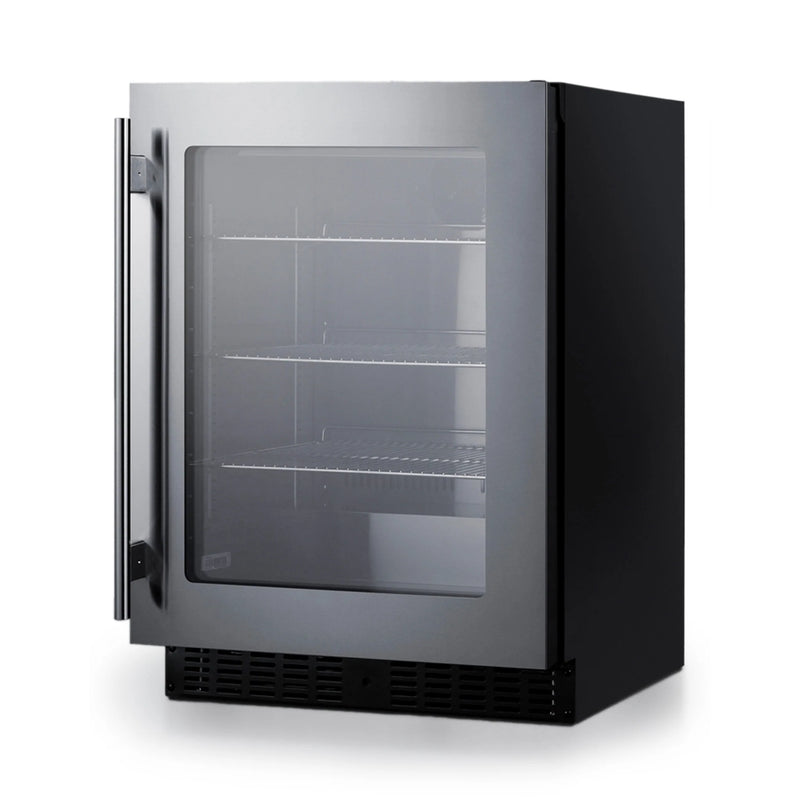

24" wide shallow depth built-in under-counter ADA compliant beverage center with glass door, stainless steel interior, black cabinet, lock, and digital controls.
KEY FEATURES
- Frost Free
- Built-in Capable
- Digital Thermostat
- Dimmable LED Lighting
- CARB Compliant
- Keyed Lock

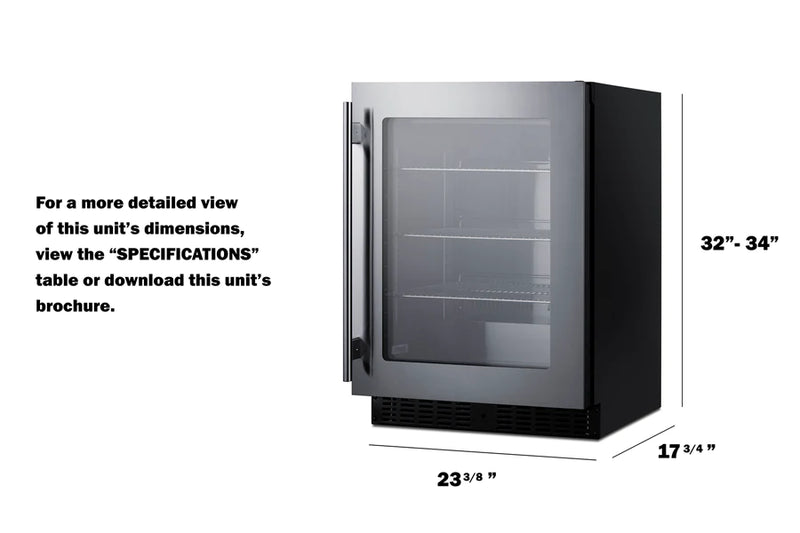

- 32.0"H x 23.38"W x 17.75"D
DESCRIPTION
Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.
Model ASDG2411 is a 24" wide beverage refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock.

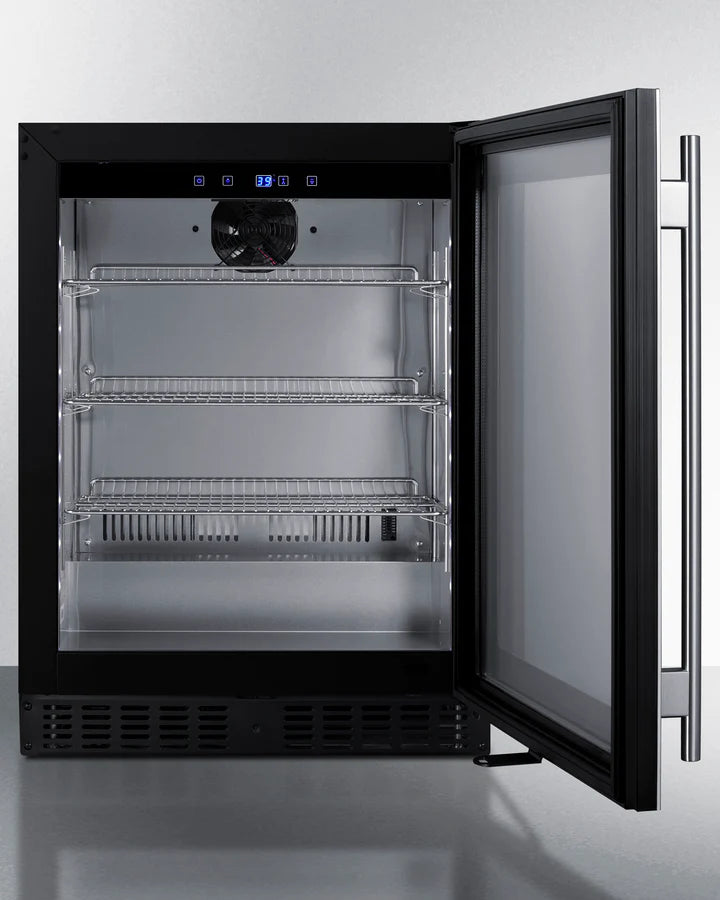

Inside, the ASDG2411 features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. Commercial grade cantilevered shelving in chrome offers flexible storage to accommodate any size. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
The ASDG2411 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2412 wine cellar. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.
FEATURES
3.25 cu.ft. interior for residential or commercial cold storage
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
32" height allows easy installation under lower ADA compliant counters
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Elegant design offers a clear but protected view of your interior
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Keyed lock for a secure interior (2 keys included)
Stainless steel handle completes the look
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
No-frost operation for minimum user maintenance
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

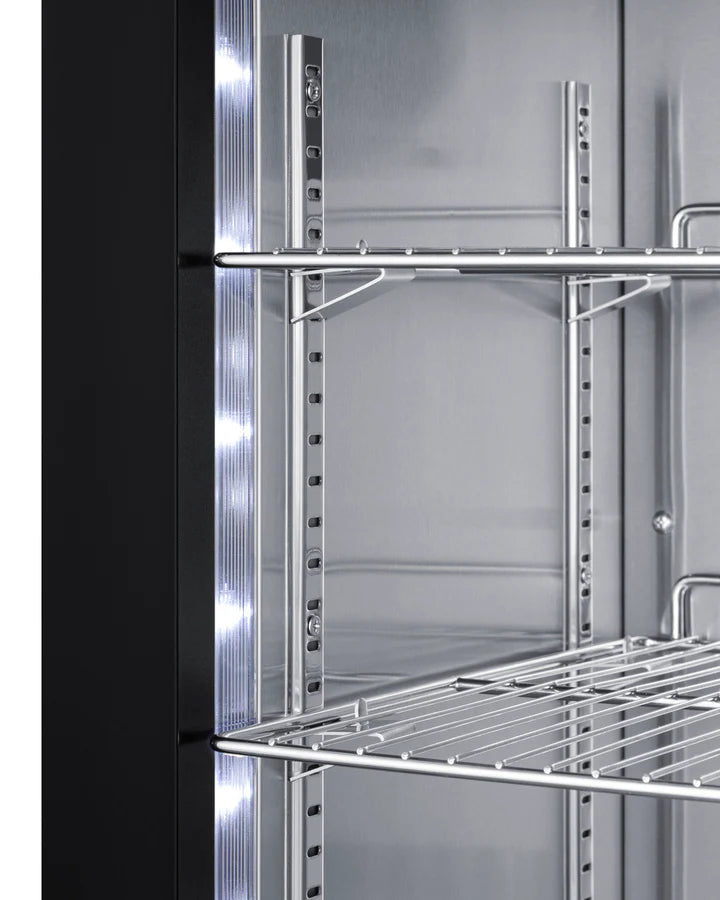

Adjustable chrome shelves with stainless steel clips allow you to adjust the shelf height for the best fit
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain its last settings when power is restored in the event of power loss
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils that offers easier cleanability
Flat hinge ensures no added height is needed when installing under a counter
User-reversible door swing for added flexibility
Allows the unit to be used freestanding
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.38" (59 cm) |
| Depth | 17.75" (45 cm) |
| Depth with Handle | 19.63" (50 cm) |
| Depth with door at 90° | 39.88" (101 cm) |
| Capacity | 3.25 cu.ft. (92 L) |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 285.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 120.0 lbs. (54 kg) |
| Shipping Weight | 140.0 lbs. (64 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101079455 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.1 dB |
|
Dimensions
|
|
| Interior Height | 24.5" (62 cm) |
| Interior Width | 19.5" (50 cm) |
| Interior Depth | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.5" (50 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
