Summit | 18" Built-In Beverage Centre (CL181WBV)
Estimated time to Ship:
5-10 Business Days
KEY FEATURES
- Auto Defrost
- Built-in Capable
- Digital Thermostat
- White LED Lighting
- Temperature Memory Function
- Operates 36-43ºF
- 34.0"H x 17.5"W x 23.5"D
DESCRIPTION
The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home
The CL181WBV is an 18" wide beverage centre. The front breathing design allows built-in installation under counters, while the fully finished cabinet in a jet black finish also enables freestanding use. The seamless stainless steel door trim blends right into the softly tinted double pane tempered glass, with a professional stainless steel handle and designer kickplate completing the stunning look. Inside, white LED lighting located on the side walls complements the black interior for an attractive presentation.

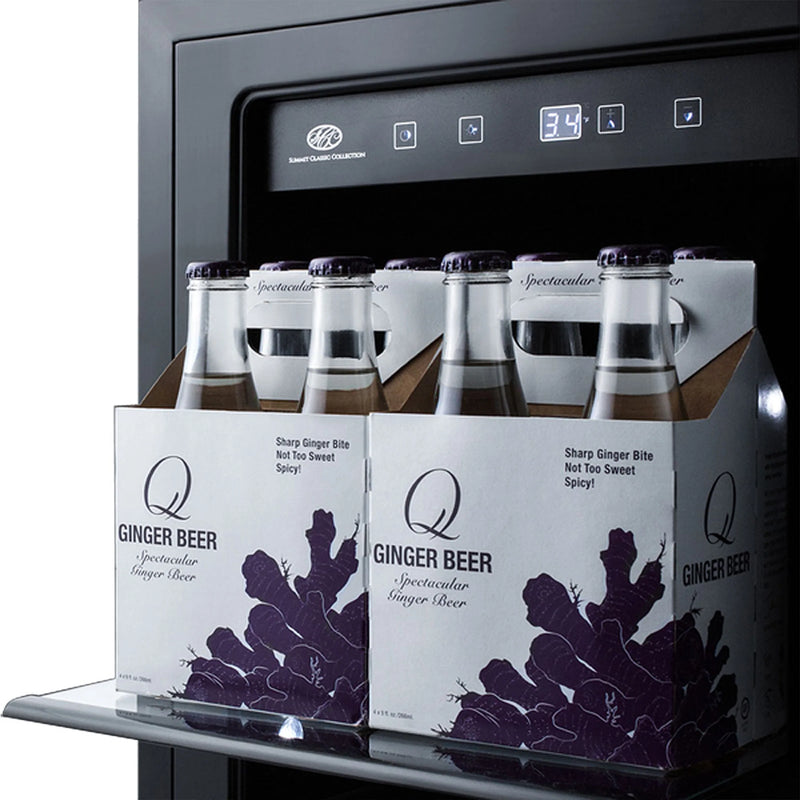

The CL181WBV includes three adjustable glass shelves for spill-proof storage. The floor is specially slotted to hold wine bottles in place. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a user-reversible door, right angle plug for added space savings, sealed back design for easier cleanup, and a Sabbath mode setting. A built-in alarm audibly warns if the door is left ajar or if the unit exceeds recommended temperature.
Uniquely styled and fully featured, the CL181WBV brings true luxury to small kitchen spaces.
FEATURES

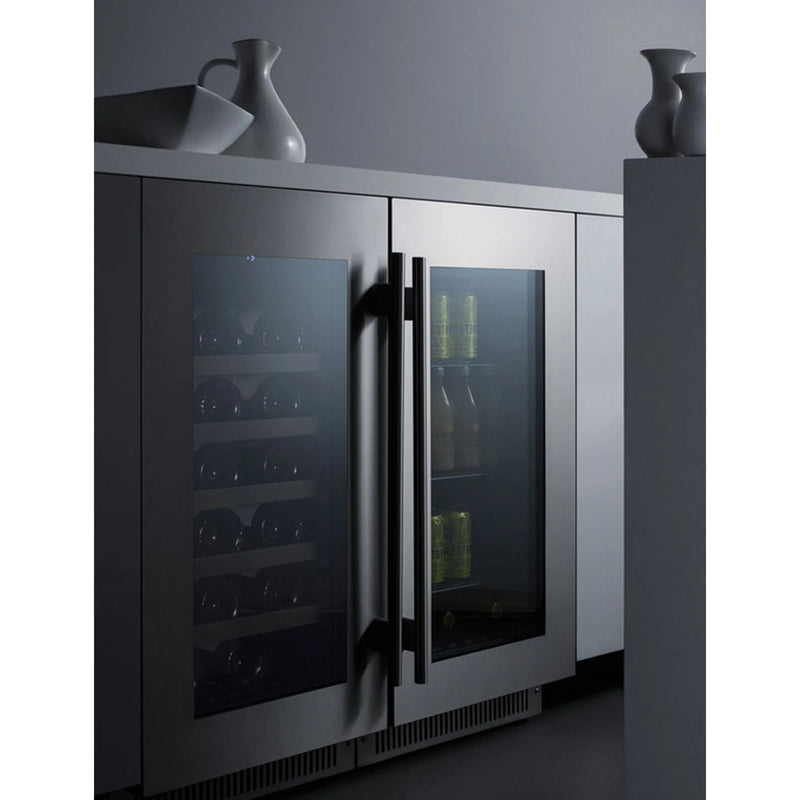

Make the best use of space by installing your appliance under the counter
Heat-safe glass ensures your items are stored safely
One-piece stainless steel door frame offers a luxurious look with no exposed seams or holes
Electronic controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit
Spill-proof glass shelves make it easy to store and display bottles and cans
Floor is specially slotted to store wine and other bottles safely in place

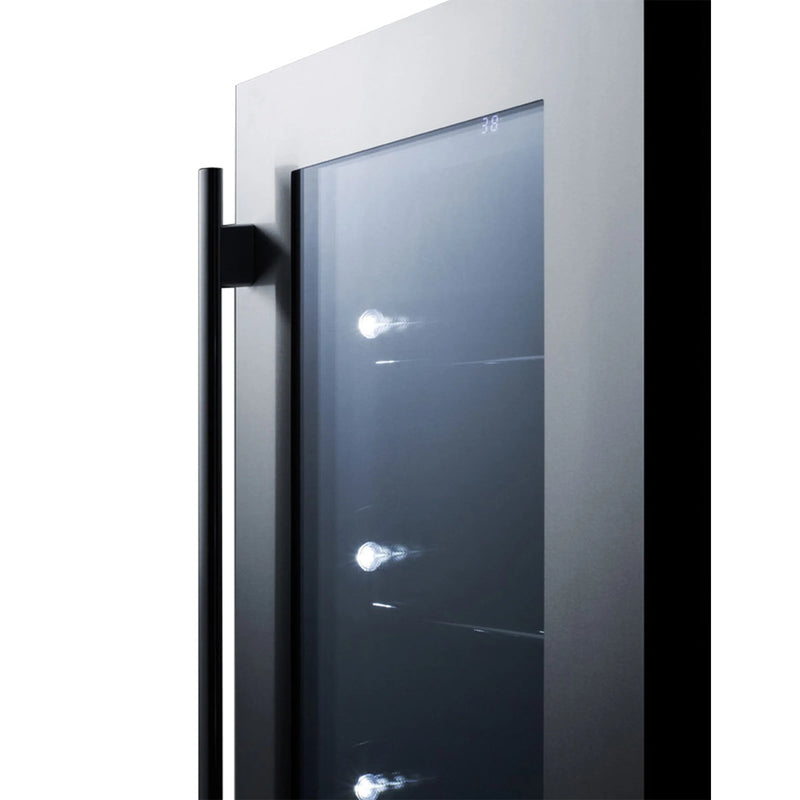

Unique white lighting located inside the walls offers elegant illumination for the jet black interior
Vertically mounted handle in brushed stainless steel
User-reversible door swing allows for more flexibility in placing the unit
Completes the professional look down to the toe kick
Optional setting lets you disable the lighting and alarm for up to 48 hours
Audibly alerts if the interior temperature is too warm
Audible alarm will sound if the door is left ajar for over 60 seconds
Internal fan ensures the interior is evenly cooled from top to bottom
Reduced maintenance and steady temperature performance
Space saving design with easier cleanability
Unit will retain its last settings when power is restored in the event of power loss
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows the unit to be used freestanding
Top hinge adds no additional height or width when the door is opened
ETL-S listed to NSF-7 standards
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.0" (86 cm) |
| Width | 17.5" (44 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 39.63" (101 cm) |
| Capacity | 2.9 cu.ft. (82 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 255.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 88.0 lbs. (40 kg) |
| Shipping Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101053462 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | Reversible |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.85oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
|
Dimensions
|
|
| Interior Height | 23.0" (58 cm) |
| Interior Width | 12.25" (31 cm) |
| Interior Depth | 17.5" (44 cm) |
| Compressor Step Height | 3.25" (8 cm) |
| Compressor Step Width | 12.25" (31 cm) |
| Compressor Step Depth | 5.25" (13 cm) |
CL181WBV_BEVERAGE_REF__A-C_2000_.dwg
CL181WBV_Manual_3-29-2019.pdf
R600a_K.pdf
